When I work with High Availability software, I’m reminded of the maze in the original computer adventure game “You are Lost in a maze of twisty-turny passages all alike…”.

If you search the web for HA programs you will find many well maintained projects all related that refer each other. The goal of this document is to give you with a step by step guide to a production worthy MySQL system. It should provide at least 99.999% access to your data and be able to scale read requests as you grow.

I have chosen these programs and utilities because they are free (as in beer) and each has enterprise support available. (When you make the money to pay for it.) If you start with this MySQL platform you will avoid many common problems. Just write your application to read and write data from different servers.

Here is what we’ll be using:

• CentOS (Redhat) 6.2
• MySQL 5.5.xx (Percona) or the MySQL of your choice
• Pacemaker - to monitor MySQL’s health
• MySQL HA (MHA) – to fail over when something happens to the master

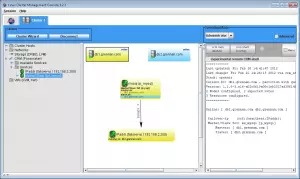

• DRDB Cluster Management Console
• Percona Toolkit – to make live easy
• OpenArk Kit – a set of utilities for MySQL
• xtrabackup for database backups
• mytop and innotop – for real time monitoring

If you want to see all this work check out my Youtube Video at : http://tinyurl.com/7yqj5gz

I’ve worked hard to make these instructions cut and past. The GREEN stuff gets cut and pasted into the linux command line. The BLUE is copied into an application (vi, crm etc), but the RED needs to be edited to fit your environment (passwords, IP). I enjoyed the work. I hope you do to.

Getting started

Every good system starts with good hardware. Two things database servers hunger for are disk space and memory. You should supply yours with as much of each as you can afford. My rule of thumb is three times size of one copy of the data. A production system with a RAID-10 disk system is good and two network ports or more is recommended.

To test this installation I’m building on a VMware server. If you’d like to know more about my hardware read my “Building a Home VMware server” story.

The Hardware

The operating system I’m using is CentOS 6.2 64 bit. Don’t use the 32bit versions.

How you define disk space is important part. Choose the type, size and partitions carefully. You don’t want daily activity filling the root file system (/) and taking down the database. The common places this can happen are, the MySQL data directory, the /tmp directory and log space. Keep these in separate partitions. I’ve found the OS system logs in /var/log take care of them selves. MySQL logs should be keep in the MySQL /data directory.

I’m test hardware (VMware ESXi 4) has four SAS hard disks. For each MySQL server (db1 and db2) I create four (4) 15Gig virtual hard disks, one on each physical SAS disk. I split each virtual disk into four partitions. The /boot partition is RAID-1 and the / (root), /data and /tmp partitions are RAID-5. The sizes of these partitions depend you your needs but your /boot needs to be about 1G and the / needs to be at least 12G.

This table show my for virtual disk and how they are raid-ed and partitioned.

Install the OS

Start with a minimum installation so you’ll have as few applications installed as possible. No desktop or server applications are needed.

After the install you should update the installed packages and include any packages you know you will be wanting or needed.

 yum -y update
 yum -y install openssh-clients rsync wget perl-DBI perl-TermReadKey

Remove any supplied MySQL.

Even with a minimum install there is a little clean up. I remove packages that are un-needed.  For better security you should remove  anything that connect to remote systems like bluetooth and printing.

 rpm -e mysql
 rpm -e mysql-libs --nodeps

Security

For the install process I turn off the firewall. In secure environments I recommend you leave it in place and deal with restrictions as they come up.

 service iptables stop
 chkconfig iptables off
 service ip6tables stop
 chkconfig ip6tables off

Because we are moving the MySQL data directory, you will need to disable SELinux or update it. To disable it, edit /etc/selinux/config and change the SELINUX line to SELINUX=disabled. Then, so you don’t have to reboot Linux for this to take effect, just write a 0 to the SELinux control file.

 vi /etc/selinux/config

SELINUX=disabled

 echo 0 >/selinux/enforce

If you don’t want to disable To update SELinux for the new data directory you will need to have the the SELinux tools installed.

 yum -y install policycoreutils-python
 semanage fcontext -a -t mysqld_db_t "/data/mysql(/.*)?"
 restorecon -Rv /data/mysql

Swap System

Serving queries from memory is much better then feeding it from disk. MySQL works hard to store data in a way to improve disk assess.  Feeding data from swap-ed out memory seems like a bad thing.  You not only have to go extra system code and the data is not stored in a way optimized for data.

Turning swap off altogether is a bad idea.  Some system utilities and applications expect there to be some swap available.  Turning down how much swap is used is the way to go.

Edit system control file and turn ‘swappness’ to zero.

vi /etc/sysctl.conf

and add the line

sys.swappiness=0

Syncing Time

Time sync is very important to maintaining accurate data. You may want to edit the /etc/ntp.conf file to point to your primary NTP time server. CentOS and Redhat provide time servers for your use. I recommend using pool.ntp.org.

 yum -y install ntp
 chkconfig ntpd on
 ntpdate 0.pool.ntp.org
 service ntpd start

Setup SSH

Now is a good time to make sure DNS works on all servers and each knows their names.

MHA need ssh access to each server. You need to create ssh keys and copy to the mysql servers.

Skip this if you already have ssh keys installed.

 ssh-keygen -t dsa -f ~/.ssh/id_dsa -N ""
 cp ~/.ssh/id_dsa.pub ~/.ssh/authorized_keys
 scp -r ~/.ssh db2:.

Network configuration

You can edit all the network setting with the network system configuration utility.

 system-config-network

Except you need to insure the hosts can ALWAY resolve each other.

 vi /etc/hosts

192.168.2.160 db.grennan.com db
192.168.2.161 db1.grennan.com db1
192.168.2.162 db2.grennan.com db2
192.168.2.163 db3.grennan.com db3

 scp /etc/hosts db2:/etc

Now is a good time to reboot each system and check the install.

 init 6

MySQL Setup

Install the MySQL of your choise. I’m installing Percona’s version 5.5.

 rpm -e mysql-libs-5.1.52 --nodeps
 rpm -Uhv http://www.percona.com/downloads/percona-release/percona-release-0.0-1.x86_64.rpm
 yum -y install Percona-Server-shared-compat
 yum -y install percona-toolkit
 yum -y install Percona-Server-server-55.x86_64
 yum -y install Percona-Server-client-55

The default location for MySQL data is /var/lib/mysql. MySQL benefits from being in it’s own partition. I’ll be putting the MySQL data in /data/mysql.

 service mysql stop
 mkdir /data
 mkdir /data/mysql
 cp -prv /var/lib/mysql/* /data/mysql
 mv /var/lib/mysql /var/lib/mysql-empty
 ln -s /data/mysql /var/lib/mysql
 chown -R mysql.mysql /data/mysql

Configure MySQL

You need to change the server-id number on each server. The minimum setting you will need are:

 vi /etc/my.cnf

[mysqld]
log-bin=mysql-bin
server-id=1                         # Each system needs a unique id number
innodb_flush_log_at_trx_commit=2
sync_binlog=1
# relay_log_purge=0 # uncomment on slaves
# read_only=1                 # uncomment on slaves

Percona has a service to help you configure MySQL for your hardware.   MySQL Configuration Wizard

Now we need to add a couple of user before we install the replicator. We also need to set a password for the root user. The root password is blank so just it return.

If you have skip-name-resolve set you will need to substitute the host names for IP addresses.

 service mysql start
 mysql -h localhost -u root -p

The next set of command are entered into the mysql client. You should have a ‘mysql >’ prompt.

 DROP USER ``@`localhost`;
 DROP USER ``@`db1.grennan.com` ;
 GRANT ALL on *.* TO `root`@`192.168.2.%` IDENTIFIED by `P@ssw0rd` with GRANT option;
 GRANT ALL on *.* TO `root`@`localhost` IDENTIFIED by `P@ssw0rd` with GRANT option;
 CREATE USER `repl`@`192.168.2.%` IDENTIFIED BY `RepP@ssw0rd`;
 GRANT REPLICATION SLAVE ON *.* TO `repl`@`192.168.2.%`;
 grant all on *.* to `hauser`@`db1.grennan.com` identified by `P@ssw0rd`;
 grant all on *.* to `hauser`@`db2.grennan.com` identified by `P@ssw0rd`;
 flush privileges;
 quit ;

Now, stop MySQL on all servers and copy all the MySQL data files to the slaves.

From the master (db1) at a system prompt ‘#’ :

 service mysql stop
 ssh db2 `service mysql stop`
 rsync -rog --delete /data/mysql root@db2:/data

Rather than type the password for MySQL each type we connect. We can also setup a usr .my.cnf to prevent this. This should connect you to the master (RW) server from each host.

 vi ~/.my.cnf

[Client]
user=root
password=P@ssw0rd
host=localhost
socket=/data/mysql/mysql.sock

 scp .my.cnf db2:.

Start Replication

On each system start MySQL and connect the two slaves to the master.

On the master we need to now the bin-file and the position. Note the numbers in purple.

 service mysql start
 mysql -e `reset master; reset slave;`
 mysql -e `show master status\G`

*************************** 1. row ***************************
File: mysql-bin.000001
Position: 107
Binlog_Do_DB:
Binlog_Ignore_DB:
1 row in set (0.00 sec)

On all slaves, use the master’s bin log position to setup replication. Start the slave and note that the IO and SQL are running. (Yes).
service mysql start

 mysql

 stop slave;
 CHANGE MASTER TO MASTER_HOST='192.168.2.201', MASTER_USER='repl',
 MASTER_PASSWORD='RepP@ssw0rd', MASTER_LOG_FILE='mysql-bin.000001', MASTER_LOG_POS=107 ;
 start slave ;
 show slave status\G

Slave_IO_Running: Yes
Slave_SQL_Running: Yes

Installing MHA

Every MySQL server needs to have a copy of the MHA Node and Manager installed. Download the latest version of MHA from the Google Code server.

http://code.google.com/p/mysql-master-ha/downloads/list

There are a number of required Perl modules. I chose to use the Fedora evaluation packages to resolve these.

• DBD::mysql
• Config::Tiny
• Log::Dispatch
• Parallel::ForkManager
• Time::HiRes

Here is my install with the fedora packages.

 wget http://download.fedora.redhat.com/pub/epel/6/x86_64/epel-release-6-5.noarch.rpm
 rpm -i epel-release-6-5.noarch.rpm
 yum -y install perl-DBD-MySQL
 yum -y install perl-Config-Tiny
 yum -y install perl-Log-Dispatch
 yum -y install perl-Parallel-ForkManager
 yum -y install perl-Time-HiRes
 wget http://mysql-master-ha.googlecode.com/files/mha4mysql-node-0.53-0.el6.noarch.rpm
 rpm -i mha4mysql-node-0.53-0.el6.noarch.rpm
 wget http://mysql-master-ha.googlecode.com/files/mha4mysql-manager-0.53-0.el6.noarch.rpm
 rpm -i mha4mysql-manager-0.53-0.noarch.rpm

MHA only need one configuration file on each server. You can name this file anything you want. Change the setting and make sure the directories exist and are writable.

 vi /etc/MHA.cnf

Insert this configuration data into the MHA.cnf file.

[server default]
user=root
password=P@ssw0rd
manager_workdir=/var/log/masterha
manager_log=/var/log/masterha/MHA.log
remote_workdir=/var/log/masterha

[server1]
hostname=db1

[server2]
hostname=db2

You should have already installed SSH keys (see above) and the ‘hauser’ installed in MySQL.

masterha_check_ssh is used to check if you have SSH working. Look for the OK after the connect test.

 masterha_check_ssh --conf=/etc/MHA.cnf

Thu Dec 1 10:10:52 2011 – [info] Starting SSH connection tests..
Thu Dec 1 10:10:53 2011 – [debug]
Thu Dec 1 10:10:52 2011 – [debug] Connecting via SSH from root@db1(192.168.0.11) to root@db2(192.168.2.12)..
Thu Dec 1 10:10:53 2011 – [debug] ok.

masterha_check_repl is used to check MySQL replicaton. This is chatty. Your are looking for the ‘MySQL Replication Health is OK’ at the end. You should pay attention to any warnings.

 masterha_check_repl --conf=/etc/MHA.cnf

—
Thu Dec 1 10:07:22 2011 – [info] Checking slave configurations..
Thu Dec 1 10:07:22 2011 – [warning] read_only=1 is not set on slave db2(192.168.0.11:3306).
Thu Dec 1 10:07:22 2011 – [warning] relay_log_purge=0 is not set on slave db2(192.168.0.12:3306).
—
MySQL Replication Health is OK.

You now have MHA installed. If the configure it wrong MHA will give some errors that are not helpful and die. check the system logs (/var/log/messages) and your MHA settings and try again.

We’ll be using Pacemaker and a command like this to fail over to a slave when the master dies.

masterha_master_switch –master_state=dead –dead_master_host=db1 –conf=/etc/MHA.cnf

Putting the H in High Availability (HA)

There are may ways a system can fail and even with MySQL running. How do you know when your dead? How do you make the new is system ready to accept data? Are your servers even on the same network? I’ve chosen PaceMaker because it is the most complete and flexible.

Install Pacemaker / CoroSync

Neither RedHat or CentOS supply PaceMaker packeges. RedHat support their own propitiatory clustering suite. CentOS does supply heartbeat. Thankfully PaceMaker project provide it in EPEL repository for Redhat 5.

Note we are installing PaceMaker for RedHat 5 not 6.2. At the time of this writing a version for 6.2 was not available. This create some dependence problems we have to work around.

 wget -O /etc/yum.repos.d/pacemaker.repo http://clusterlabs.org/rpm/epel-5/clusterlabs.repo
 yum -y install libtool-ltdl
 ln -s /usr/lib64/libltdl.so.7.2.1 /usr/lib64/libltdl.so.3
 yum -y install net-snmp
 wget http://www.clusterlabs.org/rpm/epel-5/x86_64/cluster-glue-1.0.6-1.6.el5.x86_64.rpm
 wget http://www.clusterlabs.org/rpm/epel-5/x86_64/cluster-glue-libs-1.0.6-1.6.el5.x86_64.rpm
 rpm -i cluster-glue-1.0.6-1.6.el5.x86_64.rpm --nodeps
 rpm -i cluster-glue-libs-1.0.6-1.6.el5.x86_64.rpm --nodeps
 yum -y install pacemaker corosync heartbeat

Again, make sure all the name resolves are in place on both DB1 and DB2. Heartbeat and Pacemaker provide the group communications and process management respectivly. The nodes must be able to communicate with each other.

Configure CoroSync

On both DB1 and DB2.

 corosync-keygen
 chown root:root /etc/corosync/authkey
 chmod 400 /etc/corosync/authkey

 vi /etc/corosync/corosync.conf

totem {
    version: 2
    token: 5000 # How long before declaring a token lost (ms)
    token_retransmits_before_loss_const: 20 # How many token retransmits
    # before forming a new configuration
    join: 1000 # How long to wait for join messages in the membership protocol (ms)
    consensus: 7500 # How long to wait for consensus to be achieved before
    # starting a new round of membership configuration (ms)
    vsftype: none # Turn off the virtual synchrony filter
    max_messages: 20 # Number of messages that may be sent by
    #one processor on receipt of the token
    secauth: off # Disable encryption
    threads: 0 # How many threads to use for encryption/decryption
    clear_node_high_bit: yes # Limit generated nodeids to 31-bits (positive signed integers)
    # Optionally assign a fixed node id (integer)
    # nodeid: 1234
    interface {
        ringnumber: 0
        # The following three values need to be set based on your environment
        bindnetaddr: 192.168.2.201
        mcastaddr: 239.255.42.0
        mcastport: 5405
        }
}
logging {
    fileline: off
    to_syslog: yes
    to_stderr: no
    syslog_facility: daemon
    debug: on
    timestamp: on
}
amf {
    mode: disabled
}

 vi /etc/corosync/service.d/pcmk

service {
    # Load the Pacemaker Cluster Resource Manager
    name: pacemaker
    ver: 0
}

If you didn’t edit this on both servers copy it from second server.

 rsync -rop /etc/corosync db2:/etc

Now start corosync on both servers.

 chkconfig corosync on
 /etc/init.d/corosync start

Check CoroSync healty. Look for ‘no faluts’ and both members show up as members.

 corosync-cfgtool -s

Printing ring status.
Local node ID -922572608
RING ID 0
id = 192.168.2.201
status = ring 0 active with no faults

 corosync-objctl | grep members

totem.join=1000 # How long to wait for join messages in the membership protocol (ms)
runtime.totem.pg.mrp.srp.members.-922572608.ip=r(0) ip(192.168.2.201)
runtime.totem.pg.mrp.srp.members.-922572608.join_count=1
runtime.totem.pg.mrp.srp.members.-922572608.status=joined
runtime.totem.pg.mrp.srp.members.-905795392.ip=r(0) ip(192.168.2.202)
runtime.totem.pg.mrp.srp.members.-905795392.join_count=1
runtime.totem.pg.mrp.srp.members.-905795392.status=joined

Patch for Pacemaker

Yves Trudeau had created a newer version of the mysql resource agent for Pacemaker. He keeps it at:
https://github.com/y-trudeau/. Just download it and copy it into the ocf resource heartbeat directory.

 wget https://raw.github.com/y-trudeau/resource-agents/master/heartbeat/mysql
 cp mysql /usr/lib/ocf/resource.d/heartbeat/mysql

Configure Pacemaker

Fencing is normally used and is enabled by default and should be! We’ll start my turning Shoot the other Node in the Head (stonith) off. TURN THIS BACK ON BEFORE YOU GO INTO PRODUCTION! You disable it with:

 crm configure property stonith-enabled="false"

If your cluster consists of just two nodes, switch the quorum feature off with:

 crm configure property no-quorum-policy=ignore

This is a bit of magic. I’ll explain after we’re done. Create file to configure crm and paste this document into it.

 crm configure node db2.grennan.com attributes IP="192.168.2.202"

 crm configure

Now your in the CRM configuration utility. Type in the blue part of this txt and edit the red parts to fit your configuration.

crm(live)configure# primitive failover-ip ocf:heartbeat:IPaddr \
 params ip="192.168.2.200" \
 operations $id="failover-ip-operations" \
 op monitor start-delay="0" interval="2"

crm(live)configure# primitive p_mysql ocf:heartbeat:mysql \
 params pid="/var/run/mysqld/mysqld.pid" socket="/data/mysql/mysql.sock" \
 test_passwd="P@ssw0rd" enable_creation="false" replication_user="root" \
 replication_passwd="P@ssw0rd" MHASupport="true" \
 operations $id="p_mysql-operations" \
 op monitor interval="20" timeout="30" depth="0" \
 op monitor interval="10" role="Master" timeout="30" depth="0" \
 op monitor interval="30" role="Slave" timeout="30" depth="0"

crm(live)configure# ms ms_mysql p_mysql meta clone-max="2" notify="true"

crm(live)configure# colocation col_ms_mysql_failover-ip inf: failover-ip ms_mysql:Master

crm(live)configure# order ord_ms_mysql_failover-ip inf: ms_mysql:promote failover-ip:start

crm(live)configure# commit

crm(live)configure# quit

Monitor Pacemaker

Back at the system prompt you can monitor the health of Pacemaker from the command line.

 crm_mon -Arf

============
Last updated: Fri Feb 10 14:28:53 2012
Last change: Fri Feb 10 14:26:15 2012 via crm_attribute on db1.grennan.com
Stack: openais
Current DC: db1.grennan.com – partition with quorum
Version: 1.1.6-3.el6-a02c0f19a00c1eb2527ad38f146ebc0834814558
2 Nodes configured, 2 expected votes
3 Resources configured.
============

Online: [ db1.grennan.com db2.grennan.com ]

Full list of resources:

failover-ip (ocf::heartbeat:IPaddr): Started db1.grennan.com
Master/Slave Set: ms_mysql [p_mysql]
Masters: [ db1.grennan.com ]
Slaves: [ db2.grennan.com ]

Node Attributes:
* Node db1.grennan.com:
+ IP : 192.168.2.201
+ master-p_mysql:0 : 3601
+ readerOK : 1
+ writerOK : 1
* Node db2.grennan.com:
+ IP : 192.168.2.202
+ master-p_mysql:1 : 1
+ readerOK : 0
+ writerOK : 0

Migration summary:

* Node db1.grennan.com:
* Node db2.grennan.com:

Install DRBD Management Console

The DRBD Management Console is a Java application that eases the burden of managing your DRBD and Pacemaker/Corosync or Heartbeat based cluster systems.

Download this Jar file to your workstation.

When you run it you will need to add the server logins and cluster set. You don’t need to edit anything. Skip any installations or configurations.

http://sourceforge.net/projects/lcmc/files/LCMC-1.2.3.jar/download

[I'll post a video of configuring the Management Console here.]

But wait there is MORE

Percona Tool kit

You install the Perconal Tool kit when you installed MySQL. :-) Percona Toolkit is a collection of advanced command-line tools used by Percona (http://www.percona.com/) support staff to perform a variety of MySQL and system tasks that are too difficult or complex to perform manually. As a DBA you will find them very useful. Here is a small sample:

• pt-duplicate-key-checker – Find duplicate indexes and foreign keys on MySQL tables.
• pt-heartbeat – Monitor MySQL replication delay.
• pt-index-usage – Read queries from a log and analyze how they use indexes.
• pt-query-advisor – Analyze queries and advise on possible problems.
• pt-query-digest – Analyze query execution logs and generate a query report, filter, replay, or transform queries for MySQL, PostgreSQL, memcached, and more.
• pt-query-profiler – Execute SQL statements and print statistics, or measure activity caused by other processes.
• pt-show-grants – Print MySQL grants so you can effectively replicate, compare and version-control them.
• pt-table-checksum – Perform an online replication consistency check, or checksum MySQL tables efficiently on one or many servers.
• pt-table-sync – Synchronize MySQL table data efficiently.
• pt-visual-explain – Format EXPLAIN output as a tree.

openark kit

Shlomi Noach maintains another great set of utility.

• oak-apply-ri: apply referential integrity on two columns with parent-child relationship.
• oak-block-account: block or release MySQL users accounts, disabling them or enabling them to login.
• oak-chunk-update: perform long, non-blocking UPDATE/DELETE operation in auto managed small chunks.
• oak-get-slave-lag: print slave replication lag and terminate with respective exit code.
• oak-hook-general-log: hook up and filter general log entries based on entry type or execution plan criteria.
• oak-kill-slow-queries: terminate long running queries.
• oak-modify-charset: change the character set (and collation) of a textual column.
• oak-online-alter-table: perform a non-blocking ALTER TABLE operation.
• oak-prepare-shutdown: make for a fast and safe MySQL shutdown.
• oak-purge-master-logs: purge master logs, depending on the state of replicating slaves.
• oak-repeat-query: repeat query execution until some condition holds.
• oak-security-audit: audit accounts, passwords, privileges and other security settings.
• oak-show-limits: show AUTO_INCREMENT “free space”.
• oak-show-replication-status: show how far behind are replicating slaves on a given master.

You can find them here. http://code.openark.org/forge/openark-kit

MyTOP

Mytop is a console-based (non-gui) tool for monitoring the threads and overall performance of MySQL. The original development was done by Jeremy D. Zawodny <Jeremy@Zawodny.com> and is well know after being published in the book, High Performance MySQL. I’ve updated it with as a tool for monitoring MyISAM and replication.

I would be amiss if I didn’t say something about innotop. Some consider this a  successors to mytop. It is if you are using InnoDB. I still find mytop useful. More than half of my tables are MyISAM.

 wget http://www.mysqlfanboy.com/mytop/mytop-1.9.tar.gz
 tar zxf mytop-1.9.tar.gz
 cd mytop-1.9
 perl Makefile.PL
 make install

 wget https://innotop.googlecode.com/files/innotop-1.8.0.tar.gz
 cd innotop-1.8.0
 perl Makefile.PL
 make install

Backup

Percona XtraBackup is a hot backup utility that doesn’t lock your database during the backup!

It’s best to run this from one of your slaves. I often create a local copy and then rsync the files off the backup system to a remote (off site) server using a cron script.

 yum -y install xtrabackup

 innobackupex --user=root --password=`P@ssw0rd` /tmp/Backup

Here is an example script.

export HOST=`/bin/hostname -a`
mkdir /root/Backup
/usr/bin/innobackupex –user=root –password=`P@ssword` /root/Backup
/usr/bin/xtrabackup –prepare –target-dir=/tmp/backup
/bin/find /tmp/Backup/* -mtime +1 -exec rm {} -Rf \;

Last word

If you’ve made it this fare, now is a good time to restart everything and do some testing.

 init 6

Tweet

You could do a full dump, drop everything and wait for the requests to restore. (This might be OK on a test database.)

We could ask MySQL for all the databases that have tables that have been updated in the last 30 days.

$ mysql information_schema -e  \
"select DISTINCT TABLE_SCHEMA as NAME from TABLES
  WHERE UPDATE_TIME IS NOT NULL and UPDATE_TIME > NOW() - INTERVAL 30 DAY"  \
> Databases

But this only gives a list of databases that have changed.  What about tables that are only read from?

Bin-Logs don’t help because they too only have updates.  What we really need is a long snapshot of the general log. But, starting the general log will just fill your disk space even more.

As long as all queries are remote we can use tcpdump.

Filter all the MySQL connections for  ‘FROM tablenames’.

$ tcpdump -i eth1 -s 0 -l -w - dst port 3306 | strings | \
 sed -n 's/\(.*\)\(from.*\)/\2/p' | awk '{print $2}' > TableList
 $ cat TableList | sort | uniq > ShortList

Some of the queries may reference databases.tablename so we can filter out the database names and add them to your Database list.

$ cat TableList | sed -n 's/\./ /p' | awk '{print $1}' | sort | uniq >> Databases

Now for the queries that only use table names. We need to find the database each belongs to.  This isn’t completely accurate because the table name may be in more then one databases.

$  for x in `cat TableList | sort | uniq` ;
 do
 mysql information_schema -e "select TABLE_SCHEMA from TABLES where TABLE_NAME='$x'\G"  \
 | grep TABLE | awk '{print $2}' ;
 done | sort | uniq >> Databases

To create the final list of database that should not be dropped.

$ sort Databases | uniq > KEEPTHESE ; cat KEEPTHESE

Now you can do the deed with some confidence your not removing anything being used.

P.S.  Did I tell you, Never do anything you can’t reverse.   Make a BACKUP FIRST!

Tweet

Start with CentOS 5.6 x86_64 basic install.

Add the PostgreSQL Yum repository to your system.

 $ wget http://yum.pgrpms.org/reporpms/9.0/pgdg-centos-9.0-2.noarch.rpm
 $ rpm -i pgdg-centos-9.0-2.noarch.rpm

Another location for these is DAG. I have to tried these so your results may very.

You will need to exclude the packages CentOS provide by added two lines to the BASE and UPDATE sections of /etc/yum.repos.d/CentOS-Base.repo. They are:

exclude=postgresql*
exclude=geos*

You you are ready to install the needed packages. This includes proj version 4 and geos version 3.

 $ yum install postgresql90-contrib.x86_64
 $ yum install postgis90.x86_64
 $ yum install postgresql90-server
 $ yum install proj
 $ yum install geos
 $ yum install php-pear
 $ yum install php-devel

GEOS

There may be some dependencies you will have to work through. If you are using PDO and haven’t installed the pgsql PDO drivers, you can do it now:

 $ pecl install pdo_pgsql

PL/pgSQL

You you are ready to initialize the database files and start postgresql.

 $ service postgresql-9.0 initdb
 $ service postgresql-9.0 start

Now you can change to the postgres user and begin installing the functions for GIS. You have to start with defining the language.

 $ su – postgres
 $ psql
 # create language plpgsql ;
 # \q

Now you can create your database and add the GIS functions calls to it.

 $ createdb geos
 $ psql -d geos -f /usr/pgsql-9.0/share/contrib/postgis-1.5/postgis.sql
 $ psql -d geos -f /usr/pgsql-9.0/share/contrib/postgis-1.5/spatial_ref_sys.sql

You you can verify the install.

 $ psql geos
 # select postgis_full_version();
                                              postgis_full_version
——————————————————————————————————–
 POSTGIS=”1.5.2″ GEOS=”3.2.2-CAPI-1.6.2″ PROJ=”Rel. 4.7.1, 23 September 2009″ LIBXML=”2.6.26″ USE_STATS
(1 row)

For more on using PostGIS check out Jeremy’s “PostGIS part 2”.

.

Tweet
